Motor Control Systems in Melbourne
ARA Electrical Services designs, manufactures, and commissions motor control systems for industrial facilities across Melbourne, Victoria, and key industrial sites nationally. All motor control centres are manufactured within ARA’s in-house switchboard manufacturing facility, giving us direct control over design quality, build standard, and the integration of protection, control, and drive systems into a finished product engineered specifically for the installation it is going into.

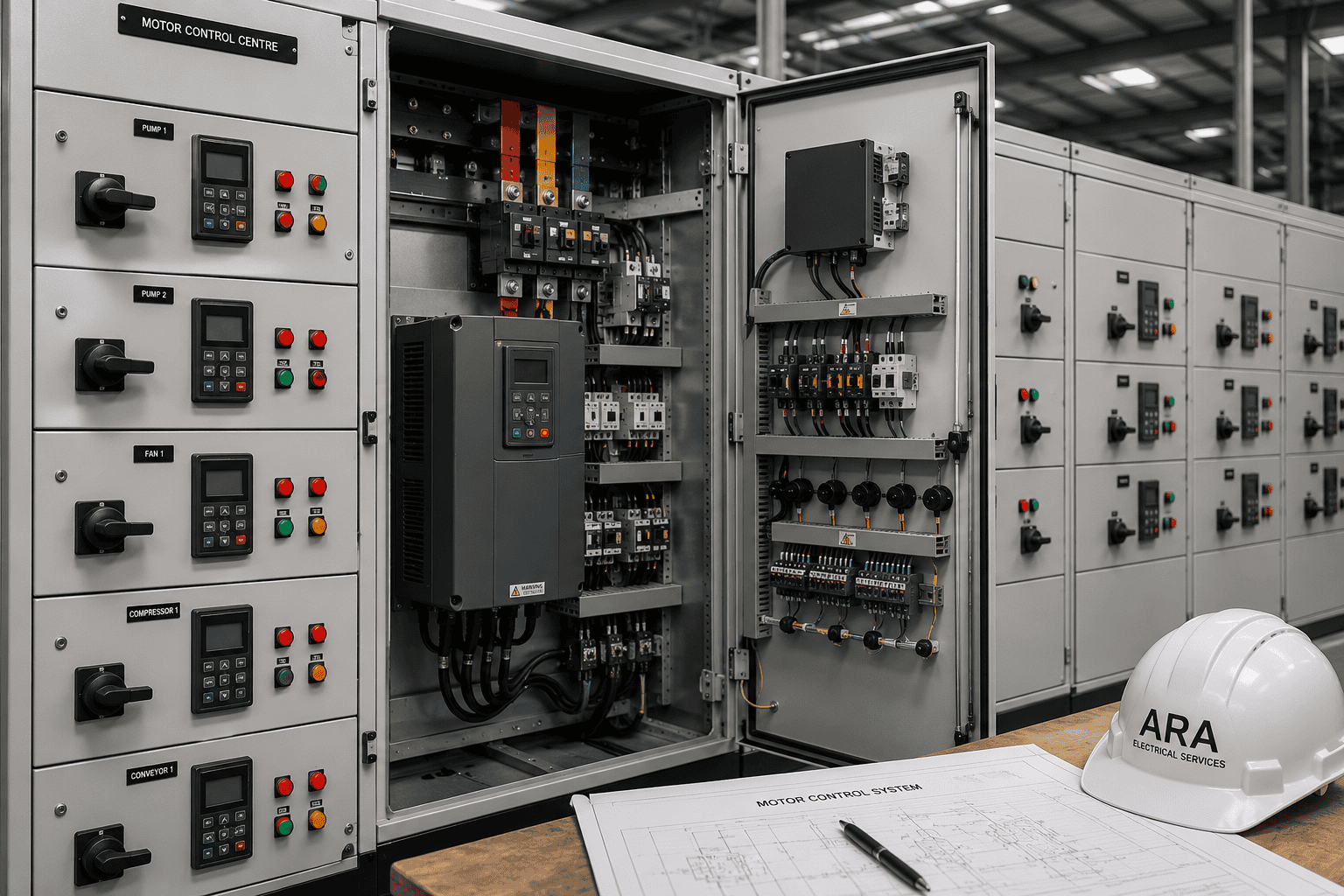

Motor Control Centre Design and Manufacture
ARA designs and manufactures motor control centres to AS/NZS 61439, developed around the specific load profile, fault level, environmental conditions, and operational requirements of each installation. MCC design covers enclosure form factor and ingress protection rating, busbar sizing and fault withstand rating, circuit breaker and contactor selection, motor protection relay specification and coordination, metering and indication, control wiring and terminal segregation, and labelling to support safe operation and maintenance.
Manufacturing is managed entirely in-house. Protection relay settings are calculated against motor nameplate data and starting characteristics, drive interface wiring is developed in coordination with the control system, and control logic is written and tested before the board leaves the facility. The result is an MCC that arrives on site engineered and verified, ready for installation and commissioning.
Variable Speed Drive Specification and Commissioning
ARA specifies and commissions variable speed drives based on motor and load characteristics, required control mode, harmonic generation potential, network interaction, and the safety function requirements of the application. Drive selection covers input filter requirements, braking resistor and dynamic braking unit sizing, output reactor specification for long cable runs, and motor derating assessments for applications with high switching frequency requirements.
Drive commissioning covers parameter configuration for the specific motor and load, safe torque off (STO) function setup and verification, speed and torque control loop tuning, multi-drive coordination on common DC bus arrangements, and integration with the site control system via Profibus, Profinet, EtherNet/IP, Modbus, or DeviceNet as required. Commissioning results and parameter records are documented and handed over as part of the project close-out package.
Motor Protection Relay Schemes
Motor protection relay selection and setting is based on motor class, starting method, load type, and the thermal and electrical characteristics of each motor in the system. Protection coverage includes thermal overload with cold and hot curve differentiation, phase loss and phase unbalance detection, locked rotor protection with separate starting and running thresholds, ground fault protection, and undercurrent detection for pump and fan applications where loss of load indicates a process fault. Protection settings are calculated and verified against motor nameplate data and starting current profiles for each motor in the system.
Control Architecture and Process Integration
Motor control architecture is developed to suit the process and safety requirements of the installation. This covers direct-on-line, star-delta, autotransformer, soft starter, and VSD starting arrangements, along with hardwired and PLC-based control logic, field device interfaces, permissive and interlock circuits, and operator interface requirements. For process-critical drives, redundant feedback arrangements, speed monitoring, and process interlock logic are incorporated into the control design.
Motor control integration with PLC and SCADA systems is implemented across the fieldbus and industrial Ethernet protocols in use at the site. Drive status, fault codes, speed feedback, energy metering, and control commands are mapped and verified against the control system functional specification during commissioning.
Machine Safety Requirements
Where motors drive hazardous plant, motor control systems are designed to satisfy the Performance Level requirements of AS 4024 and ISO 13849 for emergency stop, safe torque off, and controlled stop functions. STO wiring architecture, safety relay or safety PLC integration, and stop category compliance for each drive in the system are incorporated into the motor control design from the outset. Safety function verification is completed and documented as part of the commissioning and validation package.
Motor Control Systems in Melbourne
ARA Electrical Services provides motor control system design, manufacture, and commissioning for industrial clients across Melbourne, Victoria, and key industrial sites nationally. If your facility requires a new MCC, drive integration, motor protection upgrades, or motor control as part of a broader process or automation project, contact ARA to discuss your requirements.
